FTP Listener

The XCS eiConsole Offers the Configuration of a General FTP Adapter with a Host of Features Built-In

The General FTP Listener Adapter allows you to configure a basic FTP Adapter from the Listener Type drop down. As with all the components of the eiConsole the user is presented with a graphical interface with easy to configure screens.

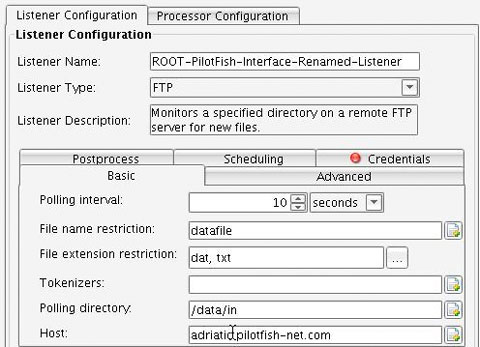

The Basic tab lets you configure how often to poll the FTP Server, File name restrictions, File extension restrictions, Tokenizers (split an inbound file into pieces based on a delimiter, when left blank the entire file is treated as a message), Polling directory and Host (FTP server).

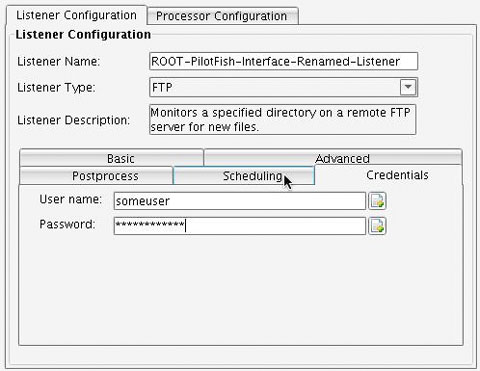

The Credentials tab allows you to enter in the User name and Password for the server.

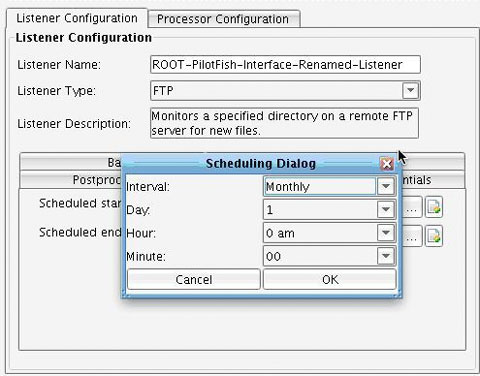

The Scheduling tab allows you to specify a start time and end time for polling the FTP server (to see the window below click on the three buttons to the right of the line).

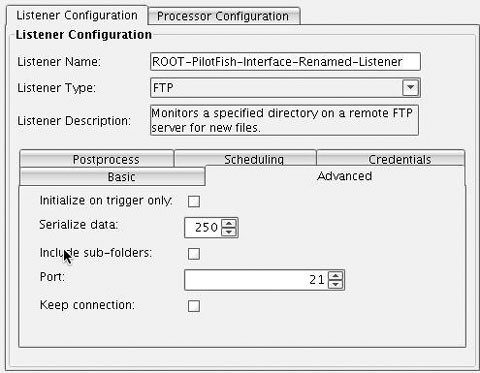

The Advanced tab allows you to choose to initialize this Listener when triggered externally, maximum number of transactions to process at a given time, determine whether to traverse sub-folders when scanning for files, change the default FTP port and determine whether to maintain the connection when not actively querying the server.

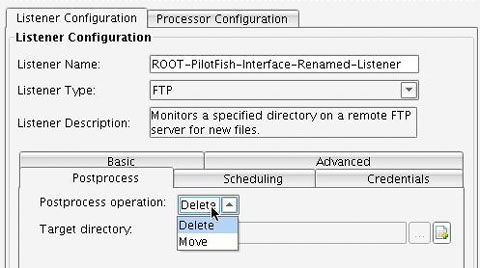

The Postprocess tab lets you determine what to do with the file after it has been processed. You can choose to Delete or Move the file. If you choose Move, the target directory configuration item becomes required. Choose the directory for where you would like to move the file. You can also enter this information as text.
